Automatic Ground Nut Dressing Machine Peanut Sugar Coating Machine / nuts pill automatic chocolate coating

FOB Reference Price:Get Latest Price
$1,200.00 - $5,000.00 / Piece | 1 Piece/Pieces (Min. Order)
Model Number:
JC-300 JC-400 JC-600 JC-800 JC-1000
Machinery Capacity:
10-250kg/h
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Brand Name:
JOCONN
Place of Origin:
Henan, China
Voltage:
220V
Power(W):
1.5kw
Dimension(L*W*H):
1100*1100*1430mm
Weight:
330kg
Certification:
ISO CE
Warranty:
12months
Application fields:
Cannery, Seasoning plant, Snack food factory
Raw material:
Nuts, Sainless Steel
Condition:
New
After-sales Service Provided:
Overseas service center available, Online support
Application:
Popcorn,candy ,nuts ,pills,tablets
Name:
coating machine
Function:
coating for nuts , candy , pills and tablets and so on
Feature:
high efficiency
Power supply:
electricity
Supply Ability
Supply Ability:
100 Piece/Pieces per Week
Packaging & Delivery

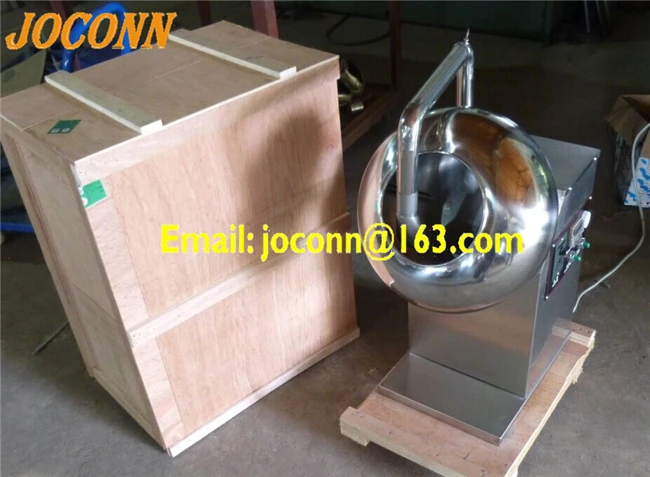

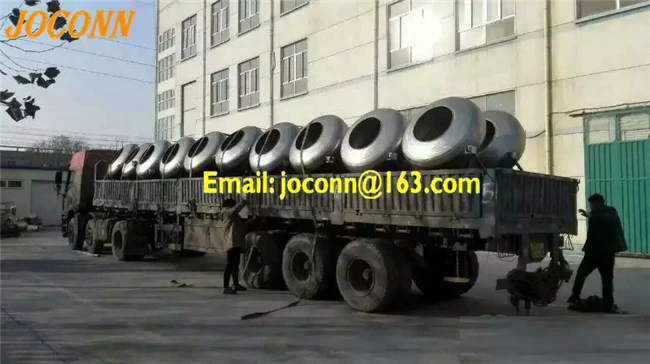

Packaging Details
wooden case
Port
Qingdao
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 5 To be negotiated
Video Description

 Automatic Ground Nut Dressing Machine Peanut Sugar Coating Machine /  nuts pill automatic chocolate coating

QQ20181101171948.jpgcoating machine (11).jpgsugar coating machine 1.jpgsugar coating machine 6.jpg

Whatsapp/wechat +86 15093228930

Introduction

 Apply to the pharmaceutical, food industry for tablets, pills coated icing. can also be used for rolling fry beans, fruit, such as the maturity of the use. It is characterized by a sugar-coated pan tilt angle of 30 degrees, the pot can be placed under the electric stove, gas and other direct heating equipment.
Randomly attached to a separate electric blower, the air duct into the ball can be used for heating or cooling, heat can be divided into two-position adjustment. Sugar coating machine is mainly used in the pharmaceutical industry to suppress the formation of tablets, pills and granules coating, can be used in the food industry candy mechanism or coating. Coated polished coated film has a bright surface, can prevent oxidation, damp or volatile, but also cover the taste of discomfort, so that drugs to facilitate the identification and ease of dissolution in the human gastrointestinal.

working principle

 with the pan clockwise rotation, so that tablets pills or nuts in the pot tumbling slip friction, so that the sugar-coated powder evenly distributed on all drugs, the electric fan is included in the heat, the wind pipe into the pot of heating, while the blower to the inside of the pot through the hot air to remove the tablet surface moisture, so that the smooth and delicate sugar coating product .



features

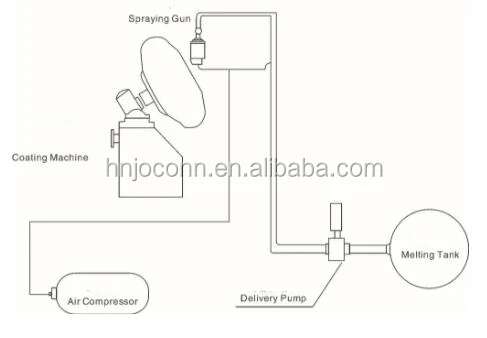

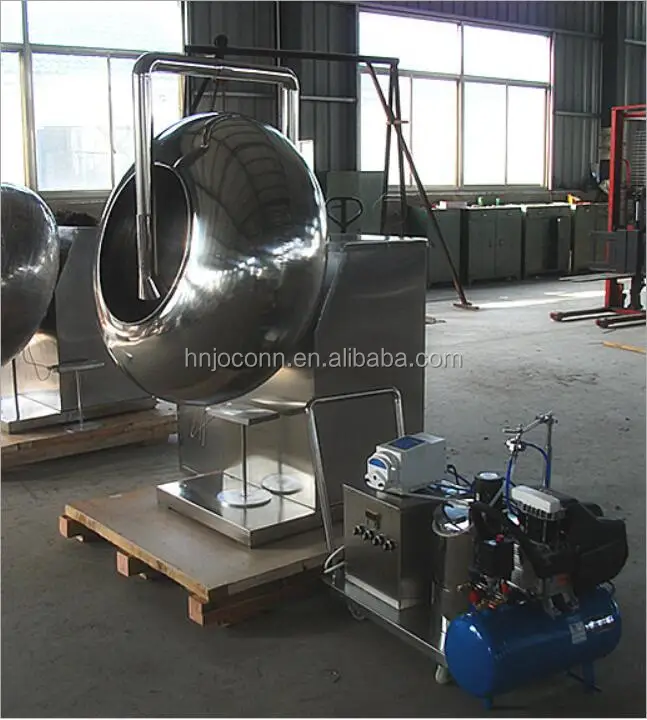

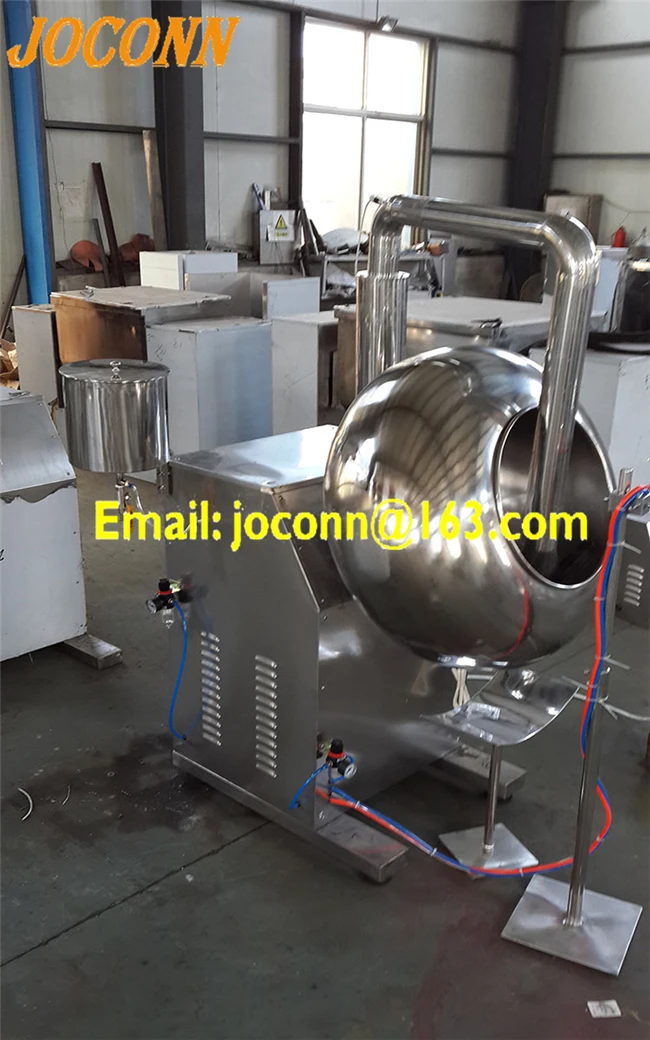

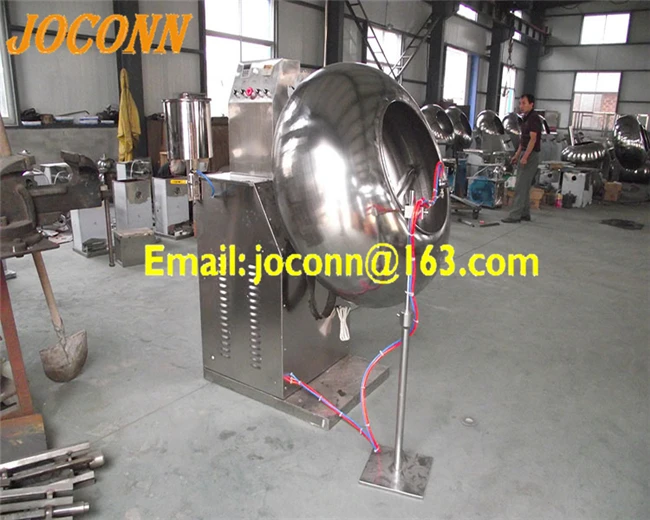

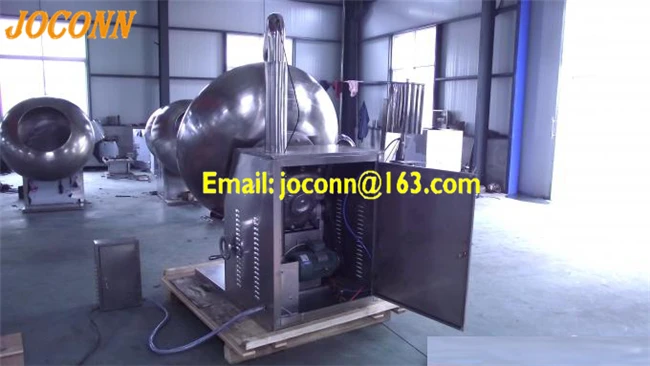

This candy coating machine includes fuselage, reducer, motor, coating pot; can also be used in accordance with the requirements of customer raw material machine configuration hot air system (450m3/h fan, stainless steel duct, rotatable, telescopic, adjustable, heater, adjustable power) and electrical box (control the whole machine, heating adjustment, digital temperature controller); Thermal (2x2kw Far infrared heater), frequency converter, Speed digital display.


parameters

Model

JC-300

JC-400

JC-600

JC-800

JC-1000

Capacity(kg/h)

6-10

10-20

30-100

100-150

150-250

Diameter(mm)

300

400

600

800

1000

Rotary speed(r/min)

46

35

35

35

31

Inclination Angel(°)

15-45

15-45

15-45

15-45

15-45

Main Power(kw)

0.37

0.37

0.55

1.1

1.5

Heat power(w)

300

600

1000

2000

2000

Weight(kg)

40

50

70

280

330



pictures

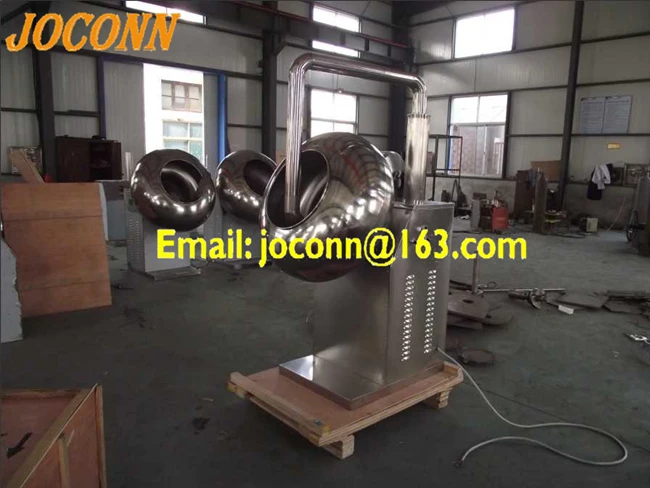

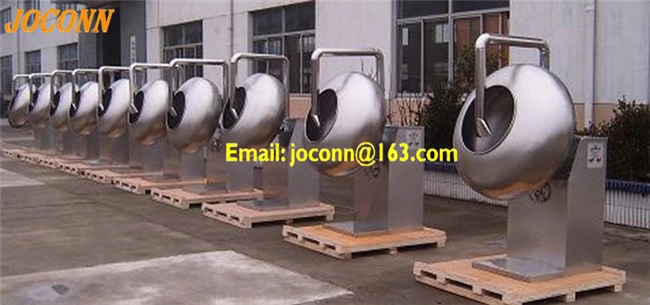

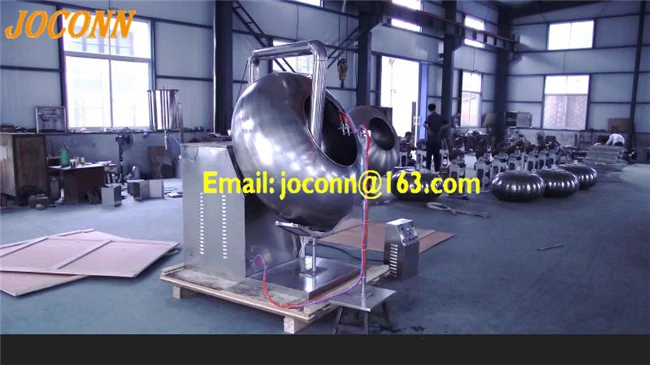

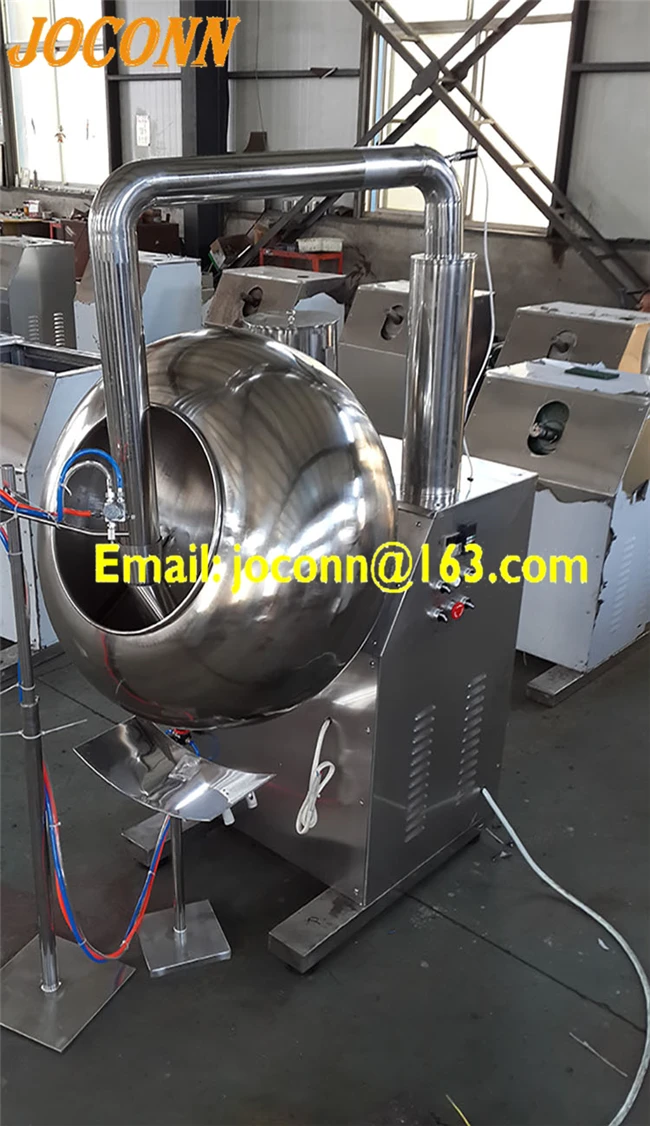

sugar coating machine 2.jpgsugar coating machine 3.jpgsugar coating machine 7.jpgcoating machine (12).jpgspray tray .jpgsugar coating machine 8.jpgsugar coating machine 4.jpgsugar coating machine 5.jpgsugar coating machine 9.jpg
